¥80.00

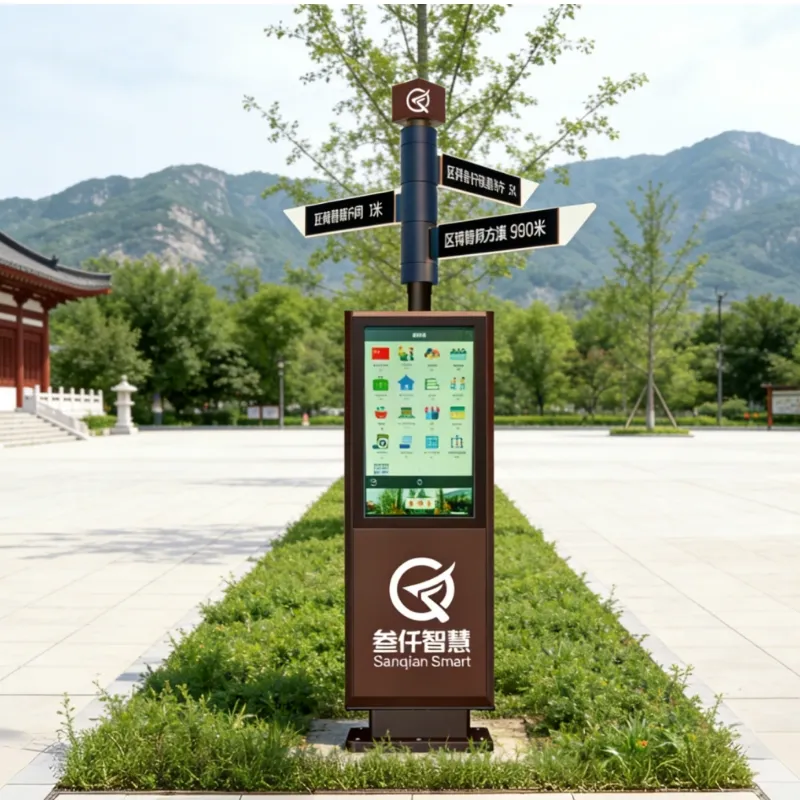

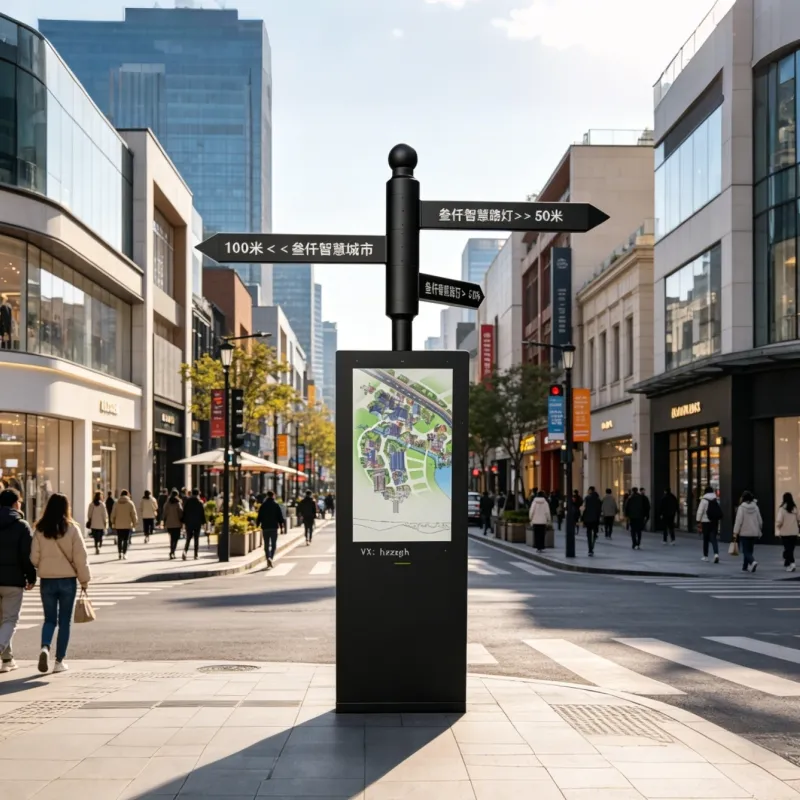

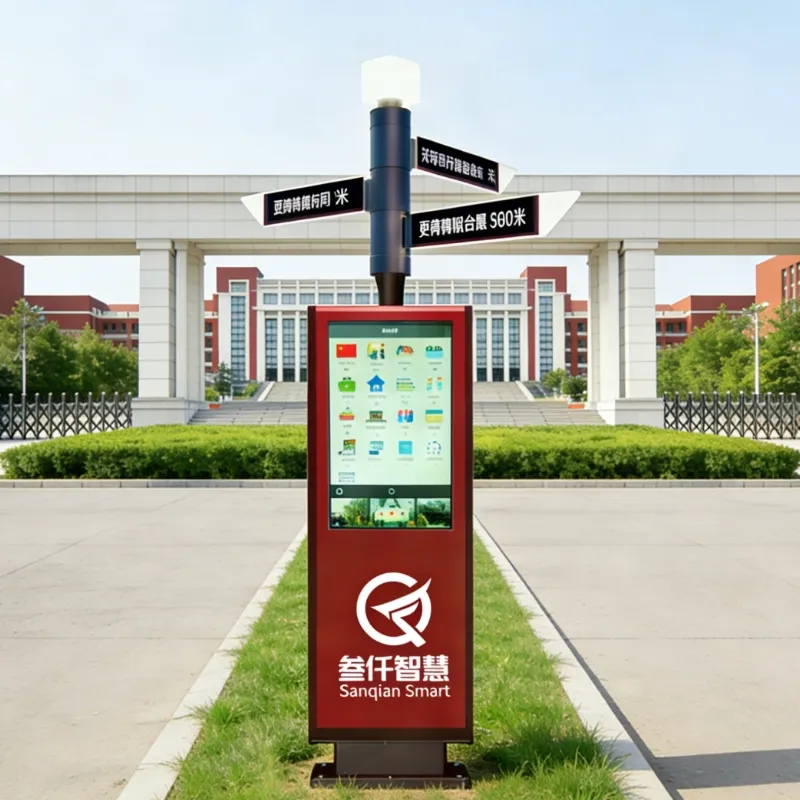

Product Name: Smart Directional Sign System Solution
Product Height: 3 m (height can be customized according to project requirements)
Application Scenarios: Mainly used in indoor and outdoor transportation hub guidance systems such as smart industrial parks, high-speed rail stations, airports, future communities, future villages, cultural tourism scenic areas, etc.
Main Functions: The smart directional sign (also called a smart wayfinding sign) is equipped with three intelligently cloud-controlled rotating LED arms, capable of displaying a vast number of destinations. The three arms rotate simultaneously for smart carousel display. Additional functions include smart lighting, environmental monitoring, one‑button SOS alarm, mobile phone charging, LED display screen, WiFi hotspot, video surveillance, and 5G micro base station, fully showcasing the city’s technological and futuristic appeal. (Specific functions can be tailored to the project; additional optional functions are also available.)
Product Introduction: The smart directional sign is an innovative product combining mechanical engineering and the Internet, and is a star product for next‑generation public guidance and brand display. Based on the intelligent hardware of a multi‑functional smart pole, it integrates outdoor high‑brightness LCD screens, smart motors, digital signage, and other hardware. With a backend that incorporates a 3D map engine and map guidance software, the intelligent rotating arms point users in the correct direction and display the actual distance, recreating the intuitive experience of asking for directions. It achieves fool‑proof navigation through innovative software and hardware, delivering the most traditional yet highly effective wayfinding experience.
The Sanqian smart signpost (also called an intelligent wayfinding sign) is a smart guidance device based on a multifunctional intelligent pole. By combining mechanical engineering with Internet technology, it delivers a revolutionary guidance experience. Its intelligent guiding arm can rotate 360° without blind spots, supports massive destination information management, and features a high‑definition interactive touchscreen that provides user‑friendly query services. With innovative hardware‑software integration and a fool‑proof navigation mode, it not only offers the most effective wayfinding experience but also meets the demand for large‑scale information publishing in the digital age. This device integrates modern information functions such as guidance, navigation, shopping assistance, interaction, big data collection, and cloud computing analytics. Simply tap your destination on the screen, and you get the best route. The smart signpost can not only adjust its directional guidance as the destination name changes but also display the distance and indicate whether to turn left or right. With multiple arms capable of 360° rotation without blind spots, all data communication is completed via 4G or WiFi, and all operations can be performed remotely from a computer.
Smart Signpost
Current Status of Guidance Systems in Transportation Hubs
Inability to meet guidance needs
Traditional signs provide incomplete information, only conveying limited nearby destinations without global information queries. They are easily overlooked and can display very limited content. They are nearly useless for users with poor sense of direction. Apps like Gaode Maps and Baidu Maps cannot provide navigation in private indoor spaces.
High pressure on guidance staff
Passengers are often in a hurry, and traditional signs cannot interact with them. Passengers have to turn to service staff, but stations are large, staff are limited, and they are usually only located in central areas, leading to a poor passenger experience.
Inability to meet convenient maintenance needs
When station environments change, traditional signs cannot be updated in real time, causing inconsistencies between guidance information and the actual environment. Updating content – from design to production, approval, and implementation – is a long, inefficient process.
Inability to meet emergency guidance needs
Emergency evacuation directions are not sufficiently three‑dimensional or intuitive.
Technical Features of the Sanqian Smart Signpost
Smart Arm
a. Can display destination name (top), destination content (bottom – default: “This way”), and distance (right side).
b. Rotates 360° to point to the destination.
c. Points to the destination based on user navigation operations and displays relevant destination information.
d. When idle, it cycles through all destinations in the area (cycle interval adjustable).
Smart Interactive Touchscreen
a. Screen saver: When idle, the screen saver can consist of images, animations, videos, audio, files, etc., guiding visitors to try the touchscreen with vivid visuals. The backend supports different content, customizable for idle periods.
b. Attraction guidance: Users can identify their current location on the screen and query travel routes between different points of interest.
c. Venue search: Supports fuzzy search by letters (Chinese & English), lists results by venue, and allows viewing of detailed venue information.
d. Category search: Searches can be filtered by categories such as public facilities, subway entrances, parking lots, attractions, etc.
Sanqian Smart Cloud Management Platform
a. Device management: Remote device desktop, running application queries, device group management, device location settings.
b. Content management: Media asset management, program publishing, program sorting.
c. Information management: Attraction management, business type management, parking lot management.
d. Information publishing
1. Device dimensions: Length 758.33 × Width 188.12 × Height 3026.66 mm, Radius 1055.32 mm
2. Input voltage: AC 220V ± 10%
3. Sign operating voltage: DC 5V
4. Sign screen resolution:192 × 32 full‑color display
5. Maximum sign rotation speed: 6 RPM
6. 32‑inch air‑cooled fully bonded screen (thickness: 12 cm)
7. High‑definition touch display resolution: 1920 × 1080
8. Arm rotation method:Motor‑driven, capable of 360° continuous rotation
9. Arm display method: Electronic screen display, with updatable content
10. Dust/water protection rating: IP66. Top sign: “I Miss You on Fangxia Street” or customizable.
11. Display information security protection terminal: Supports distributed IP‑less external protection; functions include access control, ARP protection, IP/MAC binding, flood protection, IP‑less deployment, high‑traffic warning (network traffic: <1000 Mb/s), and failover high availability.
12. Operating temperature range: –45°C to +85°C
13. Device memory: Dual‑channel DRAM controller, 64‑bit memory interface, supporting DDR3L, LPDDR2, LPDDR3.
14. Display support: OpenGL ES 1.1/2.0/3.0, OpenVG 1.1, OpenCL, DirectX 11; integrated high‑performance 2D/3D acceleration hardware; supports 4K, H.265 hardware decoding with 10‑bit color depth, HDMI 2.0; supports 1080P multi‑format video decoding and 1080P video encoding; supports H.264, VP8, and MVC image enhancement processing.
15. Custom appearance and system content to be integrated with a hand‑drawn map system; reserved mounting bracket for a dome surveillance camera.
16. Embedded parts: Device dimensions: Length 758.33 × Width 188.12 × Height 3026.66 mm, Radius 1055.32 mm.
17. Custom functions: Smart software interaction logic and interface; interface design with editable front‑end areas; screen saver that automatically switches when idle (user‑defined idle time); category search supporting fuzzy search by first letters (Chinese & English) with results listed by brand; public facility display with dynamic updates; street map display supporting target selection and linking to detailed information.
18. Copper core sheathed cable RYY 4×4 mm².
